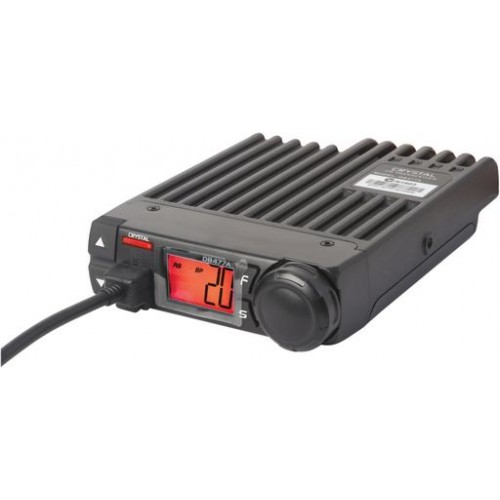

The NEW compact 5 Watt UHF CB radio can be easily installed in tight spaces. 12Vdc. Ideal for use in cars, 4WDs and caravans. This high powered unit features the new 80CH UHF Narrow Band. This new UHF standard is backward compatible with the standard 40CH UHF (Wide-band). This unit is very compact and features a large LCD display with changeable backlighting colour allowing the user to see the display clearly. The CB radio has a heavy duty die cast aluminium chassis for rugged protection and efficient heat dissipation. Among other features, this unit has a 12V line output used for muting compatible stereos when receiving a call from another transmitter. The automatic squelch has adjustable sensitivity control to help filter out annoying back-ground noise. Compact 155x112x55mm. 12Vdc. 5W. 477MHz

New Narrow band channel compatible transceiver
80 Channel UHF CB Compact
Compatible with standard 40CH UHF
High power 5 Watt transmission
Large backlit LCD display (7 adjustable colours)
Full aluminium die cast chassis with integrated heat sink
Capable of muting the car stereo when receiving signals
Automatic squelch control
Channel scanning
Duplex Range Extender feature:
Extends the range of communication through local repeater stations from the surrounding areas.
13.8Vdc (24V will need a reducer not included)

Frequency Range RX: 476.4250 ~ 477.4125MHz, TX: 476.4250 ~ 477.4125MHz
Number Of Channels Max. 80
Operation Mode 8K5fF3E
Channel Spacing 12.5kHz
Antenna Impedance 50O
Working Temperature –20? ~ 60?
Power Supply 13.8V DC±15% (11.7~15.8V)
Grounding Method Negative ground
Current Drain Less than 150mA on standby, less than 350mA on receive, less than 1.5A on transmit
Frequency Stability ±2.5ppm
Dimensions (W x H x D) 112 x 30 x 155 mm (Dimensions are including protrusions)

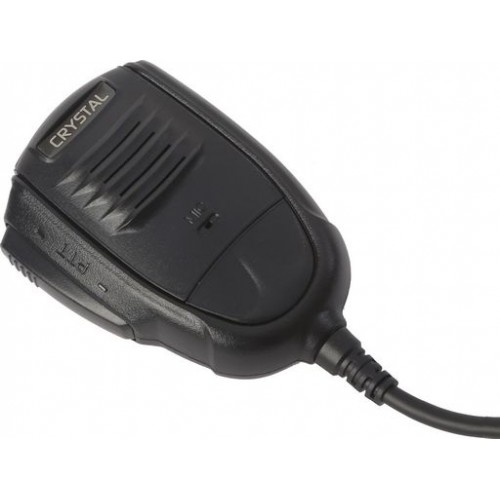

Weight: Approx. 0.8kg (including microphone)
Transmitter RF Power Output 5Watts
Spurious And Harmonics 60dB
Adjacent Channel Power 60dB
FM Noise 40 dB
Audio Distortion Less than 5%
Receiver Sensitivity EIA 12dB SINAD 0.28µV
Adjacent Channel Selectivity 60dB
Intermodulation 60dB
Audio Output Impedance 8O
Audio Output At 8O 0.5W or higher (10% distortion)

Write a review

Please login or register to review

Crystal Compact 80ch Narrow-band Uhf CB Radio

  • Product Code: sgdb477a
  • Availability: In Stock
  • $159.01
