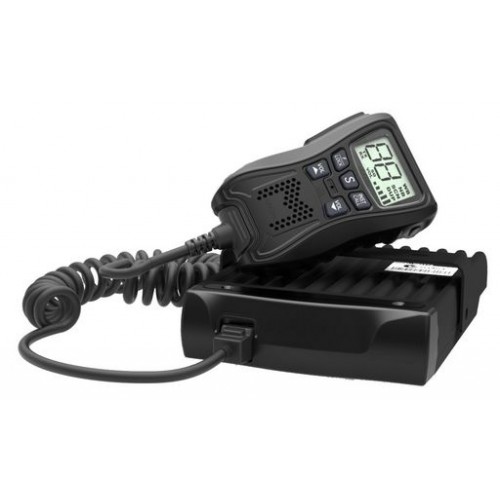

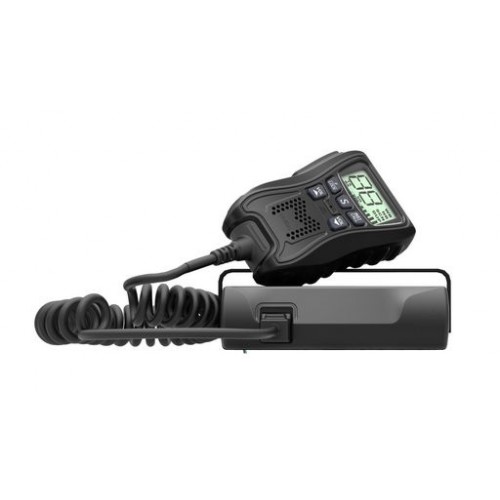

UHF CB Radio with 80CH narrow band channels, all buttons have been located on the hand-piece so the main unit can be stored away. This unit features the new 80 channel UHF Narrowband standard. This new UHF standard is backward compatible with the standard 40CH UHF (Wide-band). Extra-compact unit only 155x112x30mm.

40CH Wide-Band & 80CH Narrow Band
The ACMA (Australian Communications and Media Authority) restructured the UHF CB band and increase its capacity from 40 up to 80 channels. Older radios that operate on only 40 UHF-CB channels are “Wideband” radios and the newer radios that will operate on the 80 UHF-CB channels are “Narrowband” radios. Both Narrowband radios and Wideband radios can communicate together normally as always on the first 40 channels. Only the new Narrowband radios will have the additional channels up to channel 80.

5 Watt transmission power
Large multi-colour display (select from 7 colours)
Full aluminum die cast heat sink chassis
80 Narrow band channels 477MHz UHF (40CH Compatible)
Automatic squelch control, capable of muting car stereo when receiving
Duplex (Range extender) extends the range of communication through local repeater stations from the surrounding areas.
All the controls and an LCD display are on the mic for easy control
Channel scan function
Automatic squelch control
Mute out switch signal
12Vdc (24V will need a reducer not included)

FREQUENCY RANGE: RX: 476.4250 ~ 477.4125MHz, TX: 476.4250 ~ 477.4125MHz
NUMBER OF CHANNELS: Max. 80
OPERATION MODE: 8K5fF3E
CHANNEL SPACING: 12.5kHz
ANTENNA IMPENDANCE: 50O
WORKING TEMPERATURE: –20 ~ 60°C
POWER SUPPLY: 13.8V DC±15% (11.7~15.8V)
GROUNDING METHOD: Negative ground
CURRENT DRAIN: Less than 150mA on standby, less than 350mA on receive, less than 1.5A on transmit
FREQUENCY STABILITY: ±2.5ppm
DIMENSIONS: (W x H x D) 112 x 30 x 155 mm (Dimensions are including protrusions)
WEIGHT: Approx. 0.8kg (including microphone)
TRANSMITTER RF POWER OUTPUT: 5Watts
SPURIOUS AND HARMONICS: 60dB
ADJACENT CHANNEL POWER: 60dB
FM NOISE: 40dB
AUDIO DISTORTION: Less than 5%
RECEIVER SENSITIVITY EIA 12DB SINAD: 0.28µV
ADJACENT CHANNEL SELECTIVITY: 60dB
INTERMODULATION: 60dB
AUDIO OUTPUT IMPENDANCE: 8O
AUDIO OUTPUT AT 8O: 0.5W or higher (10% distortion)
