Crystal's programmable, professional grade, handheld CB radio with 80 narrow band channels. The unit comes with aluminium die cast chassis and inbuilt rechargeable Li-ion battery. Can reach over 12 km radius on perfect terrain and atmospheric conditions. This radio is suitable for rugged outdoor use and professional application.
KIT INCLUDES
One Hand-Held Transceiver
Charging Dock (240Vac)
Car Charger Lead (12Vdc)
Hand Strap and Belt Clip
Earphone with answer button or VOX
40CH Wide-Band & 80CH Narrow Band
The ACMA (Australian Communications and Media Authority) restructured the UHF CB band and increase its capacity from 40 up to 80 channels. Older radios that operate on only 40 UHF-CB channels are "Wideband" radios and the newer radios that will operate on the 80 UHF-CB channels are "Narrowband" radios. Both Narrowband radios and Wideband radios can communicate together normally as always on the first 40 channels. Only the new Narrowband radios will have the additional channels up to channel 80.
5 Watt Transmission power with long-reach bendable antenna for reliable reception
High gain antenna, reachable at 12km+ on perfect terrain and atmospheric conditions
Durable rugged compact design with belt clip.
Duplex (Range extender) 80 Narrow band channels 477MHz UHF (Max capacity 128)
38 Interference eliminator codes CTCSS
83 DCS codes (Digital Coded Squelch), Automatic Squelch control
Backlit LCD Display with Channel and Frequency display
Dual channel monitor, Channel Scan
Hands free (VOX) capable, optional ear-set available
LED torch light and FM radio
Call Tone alter
Rechargeable Li-Ion Batteries (1200mAh)
12Hrs usage (5-5-9 work cycle)
Removeable antenna, SMA Connector
195x56x30mm 185g
Base charger included
Sold as a single unit
Frequency Range UHF: 476.4250-477.4125MHz
Channel Capacity 80 channels
Phase Locked Step 5KHz, 6.25KHz
Operating Voltage 7.4 DC ±20%
Battery Life More than 12 Hours (1200mAh), by 5-5-90 work cycle
Frequency Stability ±2.5ppm
Operating Temperature -20~ +55°C
Size 195x56x30mm (with battery pack, no antenna)
Weight 185 g (with battery pack, no antenna)
Sensitivity (12dB SINAD) =0.35_V
Adjacent Channel Selectivity =60dB
Intermodulation =60dB
Spurious Rejection =80dB
Audio Power Output 500mW (at 10%)
Modulation 11K_F3E
Adjacent Channel =60dB
Hum & Noise =40dB
Spurious Emission =-36dB
Audio Response 6dB / per interval
Audio Distortion =5%
KIT INCLUDES
One Hand-Held Transceiver
Charging Dock (240Vac)
Car Charger Lead (12Vdc)
Hand Strap and Belt Clip
Earphone with answer button or VOX
40CH Wide-Band & 80CH Narrow Band
The ACMA (Australian Communications and Media Authority) restructured the UHF CB band and increase its capacity from 40 up to 80 channels. Older radios that operate on only 40 UHF-CB channels are "Wideband" radios and the newer radios that will operate on the 80 UHF-CB channels are "Narrowband" radios. Both Narrowband radios and Wideband radios can communicate together normally as always on the first 40 channels. Only the new Narrowband radios will have the additional channels up to channel 80.
5 Watt Transmission power with long-reach bendable antenna for reliable reception
High gain antenna, reachable at 12km+ on perfect terrain and atmospheric conditions
Durable rugged compact design with belt clip.
Duplex (Range extender) 80 Narrow band channels 477MHz UHF (Max capacity 128)
38 Interference eliminator codes CTCSS
83 DCS codes (Digital Coded Squelch), Automatic Squelch control
Backlit LCD Display with Channel and Frequency display
Dual channel monitor, Channel Scan
Hands free (VOX) capable, optional ear-set available
LED torch light and FM radio
Call Tone alter
Rechargeable Li-Ion Batteries (1200mAh)
12Hrs usage (5-5-9 work cycle)
Removeable antenna, SMA Connector
195x56x30mm 185g
Base charger included
Sold as a single unit
Frequency Range UHF: 476.4250-477.4125MHz
Channel Capacity 80 channels
Phase Locked Step 5KHz, 6.25KHz
Operating Voltage 7.4 DC ±20%
Battery Life More than 12 Hours (1200mAh), by 5-5-90 work cycle
Frequency Stability ±2.5ppm
Operating Temperature -20~ +55°C
Size 195x56x30mm (with battery pack, no antenna)
Weight 185 g (with battery pack, no antenna)
Sensitivity (12dB SINAD) =0.35_V
Adjacent Channel Selectivity =60dB
Intermodulation =60dB
Spurious Rejection =80dB
Audio Power Output 500mW (at 10%)
Modulation 11K_F3E
Adjacent Channel =60dB
Hum & Noise =40dB
Spurious Emission =-36dB
Audio Response 6dB / per interval
Audio Distortion =5%

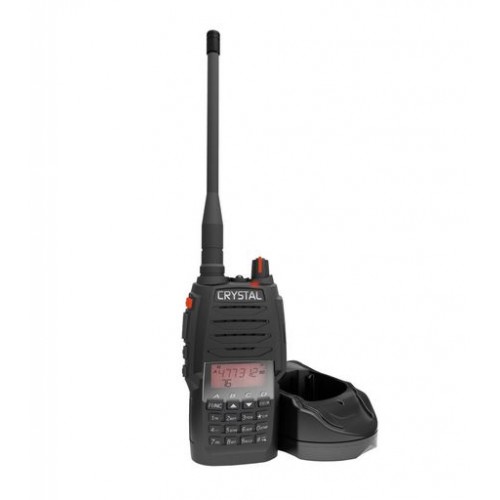

Crystal Handheld UHF CB Radio 5w - Rechargeable
- Product Code: sgdbh50r
- Availability: 10
-
$159.00
