- 0.1" 2.54mm PCB Mount Type
- Contact current rating: 3A
- Contact Resistance: 20mΩ max
- Insulator: PBT. UL-94V-0 Black
- Operating Temperature: -55~+105℃
- Soldering Pins: Tin over Nickel
- Contact Pins: Slight Gold Plated over Nickel on Mating Area
- Body Colour: Black
- Single Unit.

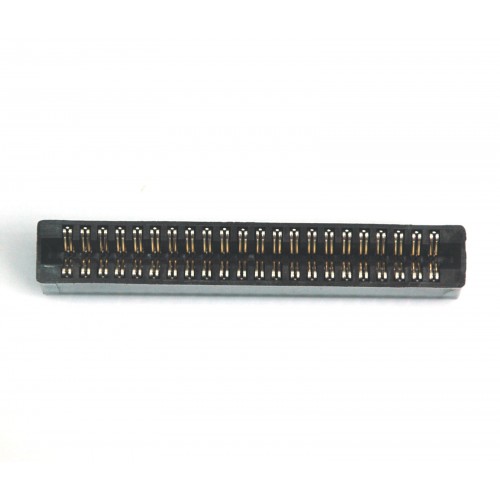

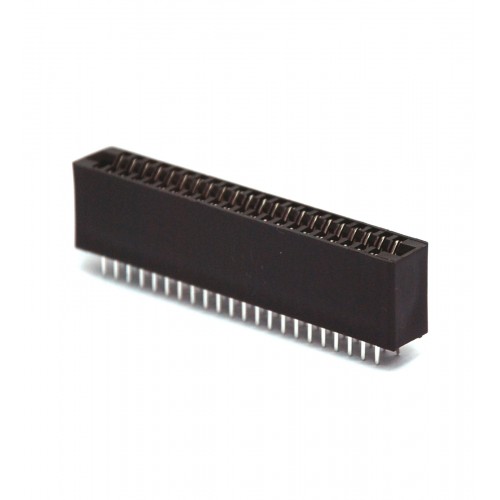

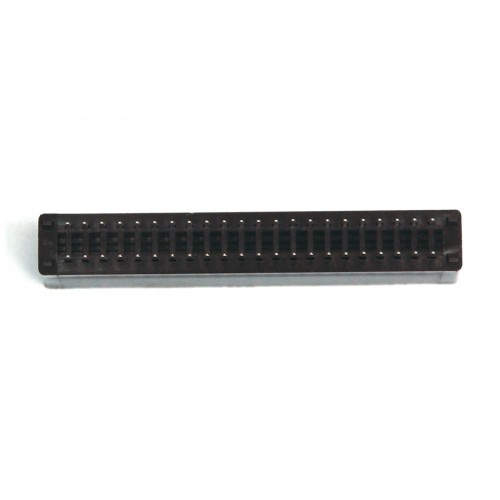

Card Edge Slot Socket Connector 50 Pin (25x2 Pin) 2.54mm 0.1" 3A RoHS PCB Mount
- Product Code:ECS50SB1A1-B
- Availability:Out Of Stock
-
$1.95
